Types and lineup of IR source lamps

Oshino has various lineup of IR lamps to meet multiple usages which customers require.
We design and produce our lamp in a captive factory so we can also propose a customized product to sartisfy each customer's demand.

PRODUCT PHOTOGRAPH

NDIR SENSOR LAMP LINEUP

*Click to enlarge image.

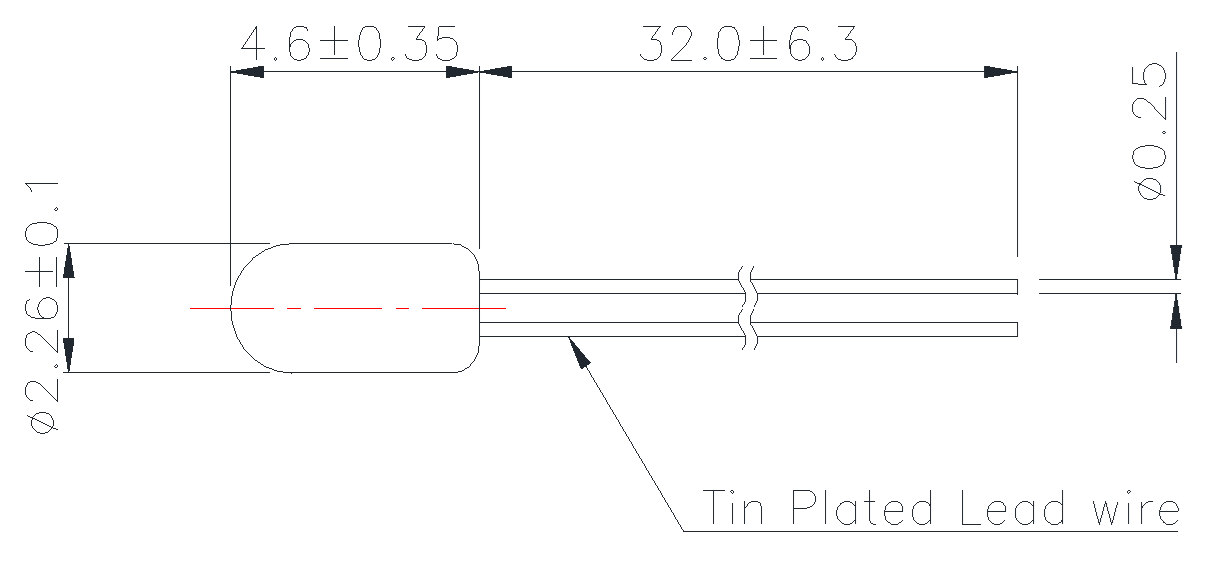

OL-7153TPL-101

Part No.
OL-7153TPL-101
Bulb dia. (mm)
2.26
Length (mm)
4.6
Filament type
CC-6
Base / Assembly
Wire Terminal
Volt (V)
5.0
Amp (mA)
115
MSCD (cd)
0.15

OL-7153TPL-201

Part No.
OL-7153TPL-201
Bulb dia. (mm)
2.26
Length (mm)
4.6
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt (V)
5.0
Amp (mA)
115
MSCD (cd)
0.15

OL-6833TPL-201

Part No.
OL-6833TPL-201
Bulb dia. (mm)
2.26
Length (mm)
4.6
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.05

OL-6803TPL-201

Part No.
OL-6803TPL-201
Bulb dia.(mm)
2.26
Length(mm)
4.6
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.03

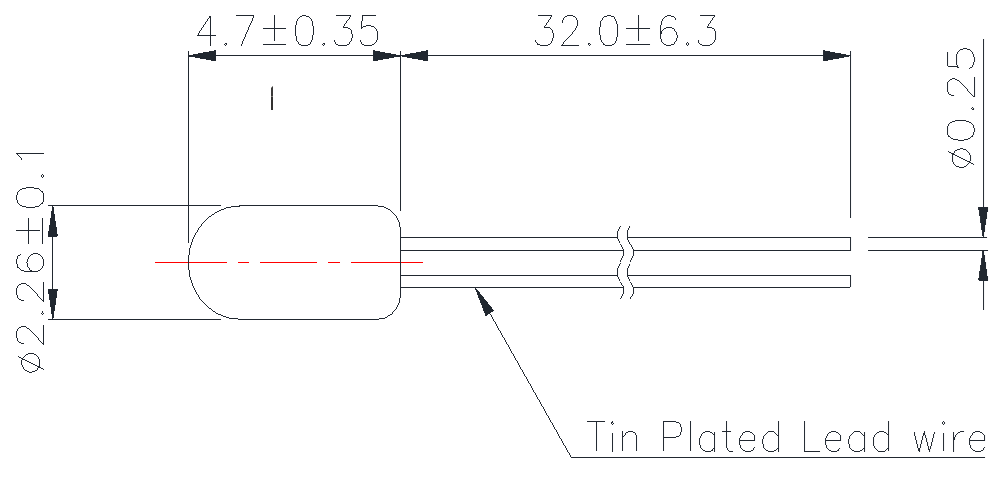

OL-2498TPL-078

Part No.
OL-2498TPL-078
Bulb dia.(mm)
2.26
Length(mm)
4.7
Filament type
C-2R/HCF
Base / Assembly
Wire Terminal
Volt(V)
4.0
Amp(mA)
65
MSCD(cd)
0.04

OL-715TPL-101

Part No.
OL-715TPL-101
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
CC-6
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-715LE/TPL-101

Part No.
OL-715LE/TPL-101
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
CC-6
Base / Assembly
Wire Terminal Lens
Top
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-715TPL-200

Part No.
OL-715TPL-200
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-683TPL-200

Part No.
OL-683TPL-200
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.05

OL-680TPL-200

Part No.
OL-680TPL-200
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.03

OL-715F1TPL-200

Part No.
OL-715F1TPL-200
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
125
MSCD(cd)
0.22

OL-7152TPL-101

Part No.
OL-7152TPL-101
Bulb dia.(mm)
3.00
Length(mm)
4.5
Filament type
CC-6
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-8270BP-101

Part No.
OL-8270BP-101
Bulb dia.(mm)
2.26
Length(mm)
7.0
Filament type
CC-6
Base / Assembly
Bi-Pin (Standard)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-8270BP-201

Part No.
OL-8270BP-201
Bulb dia.(mm)
2.26
Length(mm)
7.0
Filament type
C-2R
Base / Assembly
Bi-Pin (Standard)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718BPA-101

Part No.
OL-718BPA-101
Bulb dia.(mm)
3.00
Length(mm)
8.5
Filament type
CC-6
Base / Assembly
Bi-Pin (Type A)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718BPA-200

Part No.
OL-718BPA-200
Bulb dia.(mm)
3.00
Length(mm)
8.5
Filament type
C-2R
Base / Assembly
Bi-Pin (Type A)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718BPE-101

Part No.
OL-718BPE-101
Bulb dia.(mm)
3.00
Length(mm)
8.5
Filament type
CC-6
Base / Assembly
Bi-Pin (Type E)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718BPE-200

Part No.
OL-718BPE-200
Bulb dia.(mm)
3.00
Length(mm)
8.5
Filament type
C-2R
Base / Assembly
Bi-Pin (Type E)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718SMC/H-101

Part No.
OL-718SMC/H-101
Bulb dia.(mm)
3.00
Length(mm)
6.7
Filament type
CC-6
Base / Assembly
Horizontal SMD
Base
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718SMC/H-200

Part No.
OL-718SMC/H-200
Bulb dia.(mm)
3.00
Length(mm)
6.7
Filament type
C-2R
Base / Assembly
Horizontal SMD
Base
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718SMC/V-03-200

Part No.
OL-718SMC/V-03
-200
Bulb dia.(mm)
3.00
Length(mm)
6.8
Filament type
C-2R
Base / Assembly
Vertical SMD Base
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15
