製品ラインナップNDIRセンサー用ランプの種類

お客様の幅広い用途にお応え出来るよう、様々なタイプの赤外ランプを取り揃えております。
自社工場にて開発及び製造を行っているため、お客様の仕様に合わせたカスタム・ランプの提案も可能です。

製品写真

主要製品紹介

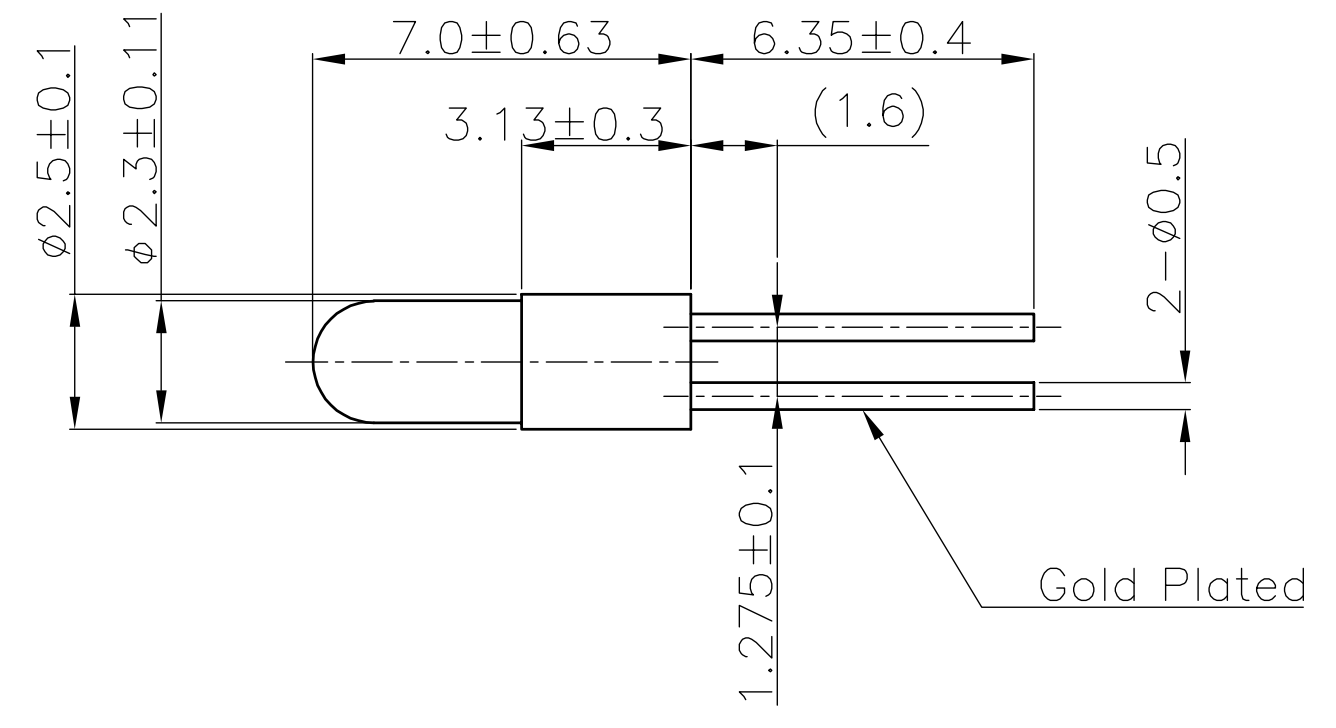

※寸法図面の画像はクリックで拡大します。

OL-7153TPL-100

Part No.
OL-7153TPL-100
Bulb dia. (mm)
2.26
Length (mm)
4.4
Filament type
CC-6
Base / Assembly
Wire Terminal
Volt (V)
5.0
Amp (mA)
115
MSCD (cd)
0.15

OL-7153TPL-200

Part No.
OL-7153TPL-200
Bulb dia. (mm)
2.26
Length (mm)
4.4
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt (V)
5.0
Amp (mA)
115
MSCD (cd)
0.15

OL-6833TPL-200

Part No.
OL-6833TPL-200
Bulb dia. (mm)
2.26
Length (mm)
4.4
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.05

OL-6803TPL-200

Part No.
OL-6803TPL-200
Bulb dia.(mm)
2.26
Length(mm)
4.4
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.03

OL-2498TPL-078

Part No.
OL-2498TPL-078
Bulb dia.(mm)
2.26
Length(mm)
4.7
Filament type
C-2R/HCF
Base / Assembly
Wire Terminal
Volt(V)
4.0
Amp(mA)
65
MSCD(cd)
0.04

OL-2502TPL-078

Part No.
OL-2502TPL-078
Bulb dia.(mm)
2.26
Length(mm)
4.6
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
110
MSCD(cd)
0.22

OL-2504TPL-078

Part No.
OL-2504TPL-078
Bulb dia.(mm)
2.26
Length(mm)
4.6
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
70
MSCD(cd)
0.10

OL-7152TPL-101

Part No.
OL-7152TPL-101
Bulb dia.(mm)
3.00
Length(mm)
4.5
Filament type
CC-6
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-715TPL-101

Part No.
OL-715TPL-101
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
CC-6
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-715LE/TPL-101

Part No.
OL-715LE/TPL-101
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
CC-6
Base / Assembly
Wire Terminal Lens
Top
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-715F1TPL-200

Part No.
OL-715F1TPL-200
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
125
MSCD(cd)
0.22

OL-715TPL-200

Part No.
OL-715TPL-200
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-3070TPL

Part No.
OL-3070TPL
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.15

OL-683TPL-200

Part No.
OL-683TPL-200
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.05

OL-680TPL-200

Part No.
OL-680TPL-200
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
5.0
Amp(mA)
60
MSCD(cd)
0.03

OL-3674TPL

Part No.
OL-3674TPL
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
3.0
Amp(mA)
16
MSCD(cd)
(0.004)

OL-3660TPL-201

Part No.
OL-3660TPL-201
Bulb dia.(mm)
3.00
Length(mm)
6.0
Filament type
C-2R
Base / Assembly
Wire Terminal
Volt(V)
2.8
Amp(mA)
15
MSCD(cd)
(0.001)

OL-8270BP-100

Part No.
OL-8270BP-100
Bulb dia.(mm)
2.26
Length(mm)
7.0
Filament type
CC-6
Base / Assembly
Bi-Pin (Standard)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-8270BP-201

Part No.
OL-8270BP-201
Bulb dia.(mm)
2.26
Length(mm)
7.0
Filament type
C-2R
Base / Assembly
Bi-Pin (Standard)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718BPA-101

Part No.
OL-718BPA-101
Bulb dia.(mm)
3.00
Length(mm)
8.5
Filament type
CC-6
Base / Assembly
Bi-Pin (Type A)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718BPA-200

Part No.
OL-718BPA-200
Bulb dia.(mm)
3.00
Length(mm)
8.5
Filament type
C-2R
Base / Assembly
Bi-Pin (Type A)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718BPE-101

Part No.
OL-718BPE-101
Bulb dia.(mm)
3.00
Length(mm)
8.5
Filament type
CC-6
Base / Assembly
Bi-Pin (Type E)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718BPE-200

Part No.
OL-718BPE-200
Bulb dia.(mm)
3.00
Length(mm)
8.5
Filament type
C-2R
Base / Assembly
Bi-Pin (Type E)
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718SMC/H-101

Part No.
OL-718SMC/H-101
Bulb dia.(mm)
3.00
Length(mm)
6.7
Filament type
CC-6
Base / Assembly
Horizontal SMD
Base
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718SMC/H-200

Part No.
OL-718SMC/H-200
Bulb dia.(mm)
3.00
Length(mm)
6.7
Filament type
C-2R
Base / Assembly
Horizontal SMD
Base
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15

OL-718SMC/V-03-200

Part No.
OL-718SMC/V-03
-200
Bulb dia.(mm)
3.00
Length(mm)
6.8
Filament type
C-2R
Base / Assembly
Vertical SMD Base
Volt(V)
5.0
Amp(mA)
115
MSCD(cd)
0.15
